AHM11
Galería
Descripción general

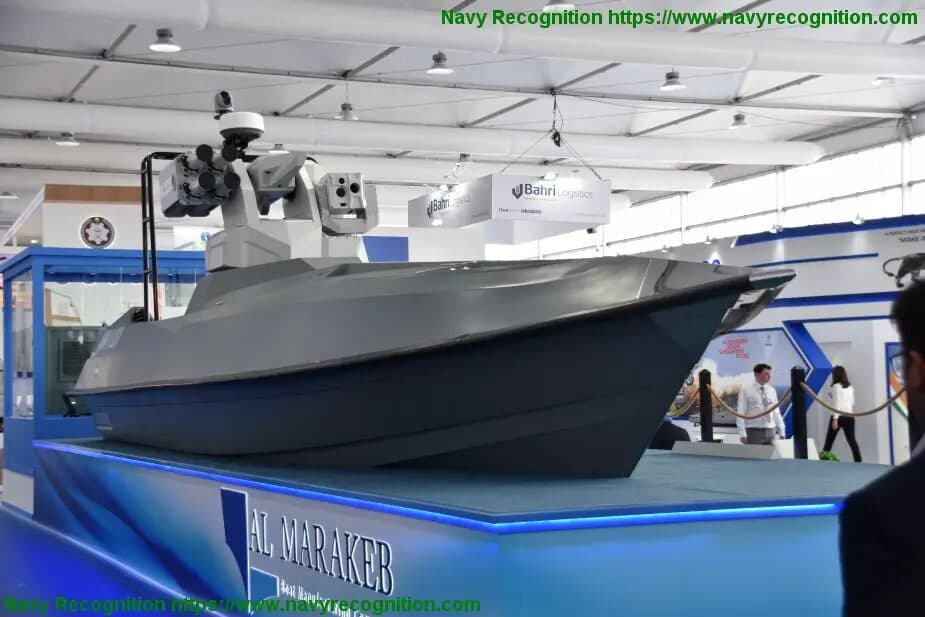

Armed 11 m and 13 m UAE USVs from Al Marakeb, fitted with a missile launcher.
The AHM11 and AHM13 are armed uncrewed boats from the UAE's Al Marakeb (now Marakeb Technologies), designed to tackle surface and air threats for the country's armed forces. The 11 m AHM11 runs on two 350 hp diesels and waterjets and carries an electro-optical camera and a missile launcher supplied by the Emirati-Turkish IGG Aselsan venture. The larger 13 m AHM13 was developed with Al Hareb Marine. Both are driven from a command centre through Marakeb's MAP Pro system, which streams engine data, video and radar pictures in real time.
Roles principales
Notas
The AHM11 is about 11 m long and 2.8 m wide, with twin 350 hp diesels driving Hamilton HJ241 waterjets, an EO/IR camera and the IGG Aselsan MILAS missile launcher. The AHM13 is a 13 m version developed with Al Hareb Marine. Both use the MAP Pro control system, which relays engine data, route management, camera video and radar to the command centre. Speed has not been published.
