XV Madfox

L3HarrisUnited Kingdom🇬🇧
ВоенныеUSVsurfacein Royal Navy service with NavyX since March 2021

Галерея

Обзор

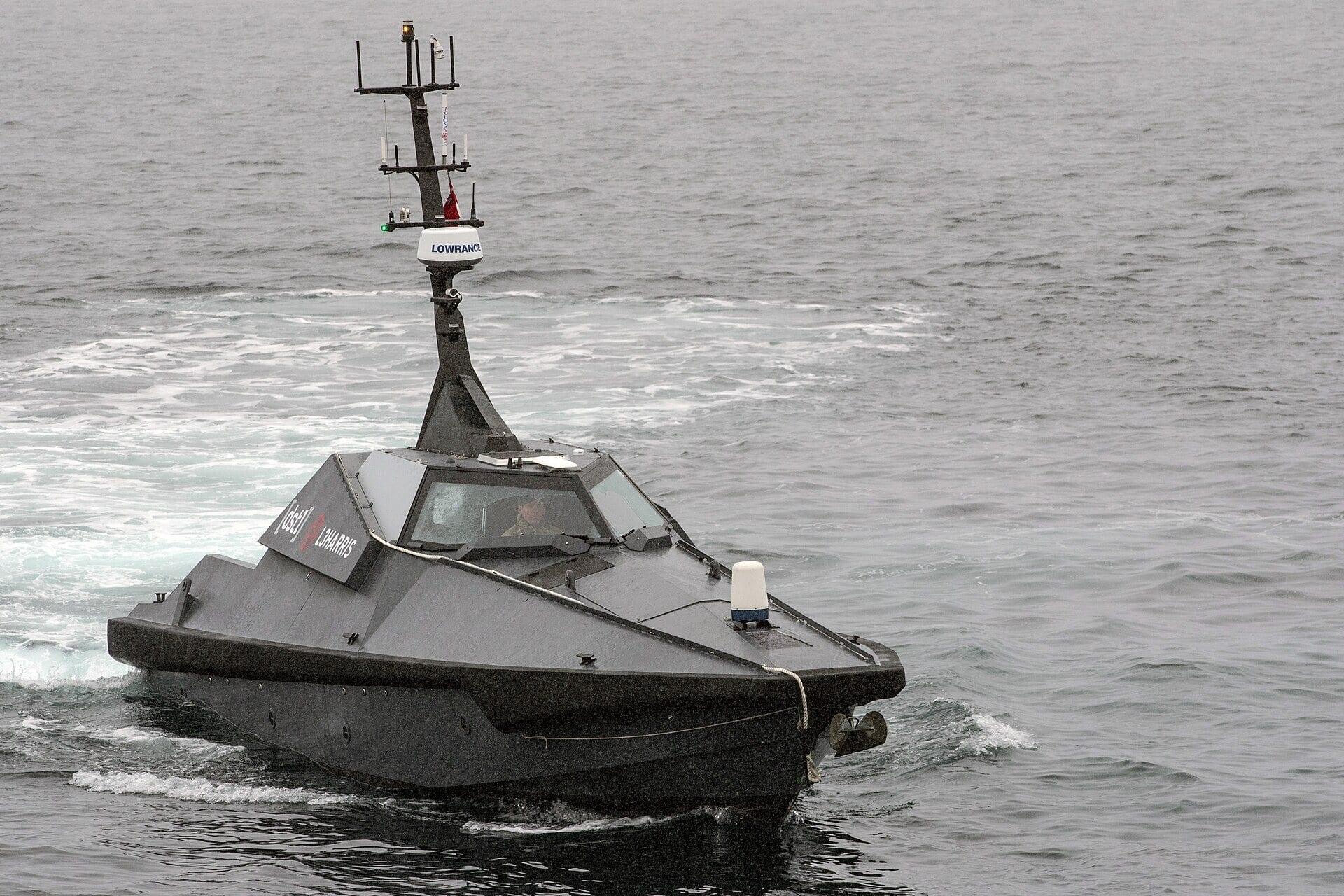

Royal Navy's 13 m high-speed autonomous test boat, originally the MAST-13 demonstrator built by L3Harris for Dstl.

XV Madfox is the Royal Navy's 13 m autonomous test boat and one of the service's first uncrewed surface vessels. It began life as MAST-13 (Maritime Autonomy Surface Testbed), built by L3Harris's UK uncrewed-systems business for the Defence Science and Technology Laboratory and launched in 2019. Twin Cummins diesels driving waterjets push it to around 40 knots, and L3Harris's ASView autonomy software, with algorithms developed for Dstl, lets it navigate and avoid collisions without a crew. In 2021 it was handed to NavyX, the Royal Navy's innovation unit, renamed Madfox, and it is used to develop uncrewed surveillance and force-protection tactics for the fleet.

Основные роли

autonomy trialsforce protectionsurveillancefleet experimentation

Примечания

Built by L3Harris (formerly ASV Global) as MAST-13 for the UK Defence Science and Technology Laboratory and launched at DSEI in September 2019. Handed to NavyX on 26 March 2021 and renamed XV Madfox. About 13 m long, twin Cummins diesels with waterjets, top speed around 40 kn.

Технические характеристики

Длина
13 m
Скорость
about 40 kn
Полезная нагрузка
Modular sensor and mission payloads for force-protection and surveillance trials
Техническая документация
Автономность
fully autonomous navigation using L3Harris ASView, or remote control

Также известен как

MAST-13Maritime Autonomy Surface TestbedMadfox
SeaDroneWorld IDSD-S-116
