Proteus

HIIUnited States🇺🇸
MilitaryUUVunderwaterdemonstrator; completed a 30-day simulated endurance test

Gallery

Overview

American dual-mode underwater vehicle that can carry special-forces divers or run fully autonomous cargo missions.

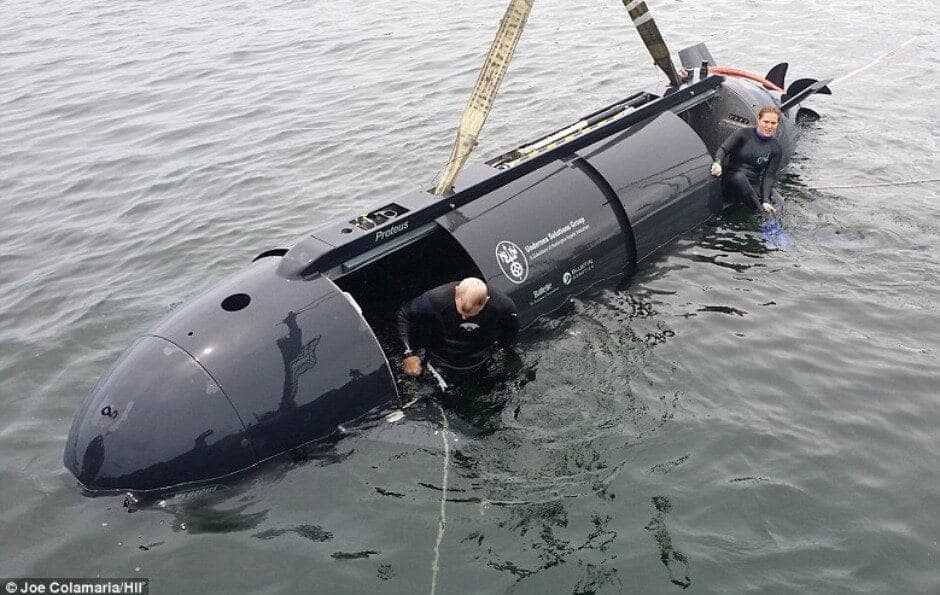

Proteus is a dual-mode undersea vehicle developed by Battelle and Huntington Ingalls Industries that can work either as a crewed swimmer delivery vehicle or as a fully autonomous UUV. About 7.8 m long and weighing roughly 3.7 tonnes, it can carry up to six divers in crewed mode, or around 170 cubic feet and 3,600 lb of cargo when running on its own. It reaches more than 9 knots and works to about 46 m with a crew or 61 m uncrewed. That flexibility lets special-operations forces use one vehicle to insert teams covertly, then send it on long autonomous missions to deliver payloads, lay sensors, or gather intelligence. A 30-day simulated mission covering 2,412 nautical miles demonstrated its endurance.

Primary Roles

special-operations diver deliveryautonomous payload deliveryseabed operationsintelligence surveillance and reconnaissance

Notes

Battelle specifications: 310 x 63.5 x 64 in (about 7.8 x 1.6 x 1.6 m), 8,240 lb, 9+ kn, working depth 150 ft crewed or 200 ft (61 m) uncrewed, 170 ft³ cargo volume, 3,600 lb cargo weight. Developed by Battelle with Huntington Ingalls; a 30-day, 2,412 nm endurance mission was simulated in a test tank in Panama City, Florida.

Technical Specs

Length
7.8 m
Max Depth
61 m
Speed
9+ kn
Payload
About 170 ft³ (4.8 m³) and up to 3,600 lb (1,630 kg) internal cargo, or up to six divers
Technical Documentation
Autonomy
dual-mode: crewed swimmer delivery vehicle or fully autonomous UUV

Also Known As

Proteus dual-mode UUVProteus SDVBattelle Proteus
SeaDroneWorld IDSD-U-102

Data Source

Type: news
Verified: 2026-10-08
View Source Report a correction
